Typ821

With the Typ821, while earlier MADOO models featured multi-driver configurations, this model is designed around a single driver—the newly developed "Ortho" driver. It serves as a reference point for future MADOO products, focusing on fine-tuning the sonic qualities of a single-driver design. It is the first model to adopt the "Ortho" driver.

The Typ821 emphasizes mid-to-high range tuning, offering detailed and energetic vocal reproduction with soft expression, crisp and metallic hi-hats with clear articulation, and an airy soundstage. It captures music on a grand scale and excels with a cappella or sparsely arranged instrumentation, delivering a fresh and vivid listening experience.

The Typ821 is equipped with MADOO's newly developed push-pull microplanar magnetic driver, "Ortho." Planar drivers generally come in two types: push-pull and single-drive. "Ortho" uses the push-pull configuration, where ultra-thin vibrating diaphragms with micrometer-scale printed coils are suspended between two sets of five front and rear magnets. This balanced setup ensures optimal drive performance.

Push-Pull Micro-Planar Driver “Ortho”

The push-pull drive type is known for its responsiveness and excellent acoustic characteristics, as it drives the diaphragm from both sides using front and rear magnets. It reproduces sparkling highs and powerful lows. However, incorporating multiple small, strong magnets poses a challenge when aiming for compact, lightweight earphones. As a result, this type of driver has mainly been used in large-format headphones. In the case of "Ortho," MADOO's engineers—drawing from experience in dynamic driver development—overcame these technical hurdles to create a high-performance push-pull driver suitable for earphones.

In summary, MADOO’s Ortho driver is a compact and lightweight push-pull microplanar magnetic driver developed specifically for earphones. It delivers exceptional sound quality with brilliant highs and impactful bass.

High-Rigidity Housing

The Typ821 adopts a high-rigidity housing made from titanium—a metal known for its machining difficulty. Titanium combines extremely high rigidity with light weight and biocompatibility, making it ideal for earphones.

The housing is designed by MADOO engineers with expertise in precision metalwork, including those with experience machining luxury watches and high-end automobiles. Using powerful, multi-axis CNC machinery capable of high-precision cutting, MADOO machines the housing from solid titanium blocks.

MADOO believes housing rigidity is crucial to unlocking the full potential of the driver unit and carefully applies this principle in its product design. The surface is sandblasted for hardness, and the shell is made significantly thicker than typical earphones—all to ensure that no compromises are made in sound quality.

This titanium housing gives the Typ821 exceptional structural rigidity, allowing the Ortho driver to perform at its highest level.

MIAA & Schematic Design

To enhance reliability and performance, MADOO implements its proprietary "MIAA: MADOO In-ear Acoustic Architecture"—a platform inherited from earlier models and used across the current product line.

MADOO refers to the internal component housing the driver as the "acoustic box." This acoustic box is produced using 3D printing and features a complex acoustic circuit known as the "schematic design." Precision resin is used for printing, with careful pre-curing and post-curing to ensure tight dimensional tolerance of 5μm. This precision manufacturing enables strict quality control, minimizes variation, and delivers the precise sound intended by MADOO.

The housing structure is designed with a tightly controlled schematic layout and a seamless build. MIAA contributes to optimal driver performance and consistent sound reproduction. These precise engineering efforts are part of MADOO's commitment to delivering peak performance and customer satisfaction.

Optimized Fitting

MADOO places strong emphasis on achieving the best possible fit and ergonomics. Rather than relying on international standards based on Western ear shapes, MADOO focuses on key high-end earphone markets like Japan, China, and South Korea, which have distinct ear profiles. Over a three-year period, MADOO collected ear impressions from 300 male individuals in these regions to derive an optimized ear shape. An additional year of study involving 100 more individuals helped refine the fit for the Typ821 even further.

This approach allows MADOO to design a housing with both superior fit and aesthetic appeal. As with previous models, the stem adopts an elliptical shape to match the natural shape of most ear canals. This ensures a secure and natural fit, maintaining acoustic performance without compromising MADOO's sound design.

Sapphire Crystal

To combine visual elegance with functionality, MADOO uses sapphire crystal for the housing window—drawing inspiration from submarine and luxury watch designs. Sapphire crystal is highly transparent and visually refined, commonly found in premium watches. With a Mohs hardness rating of 9, it offers exceptional scratch resistance and excellent thermal durability.

For long-term usability, MADOO values the heat and corrosion resistance of sapphire crystal—properties that outperform conventional glass or plastic materials. In terms of function, the sapphire window incorporates a cavity design that regulates the back pressure of the speaker assembly, further enhancing driver performance.

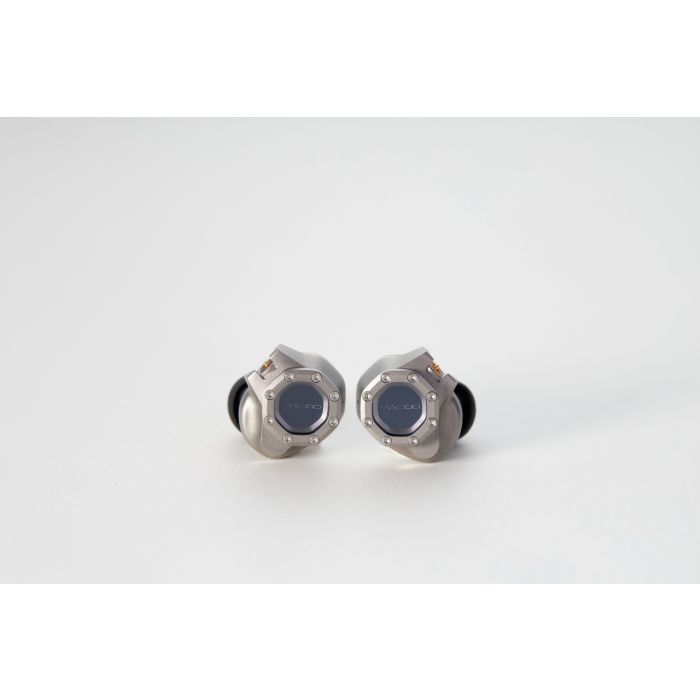

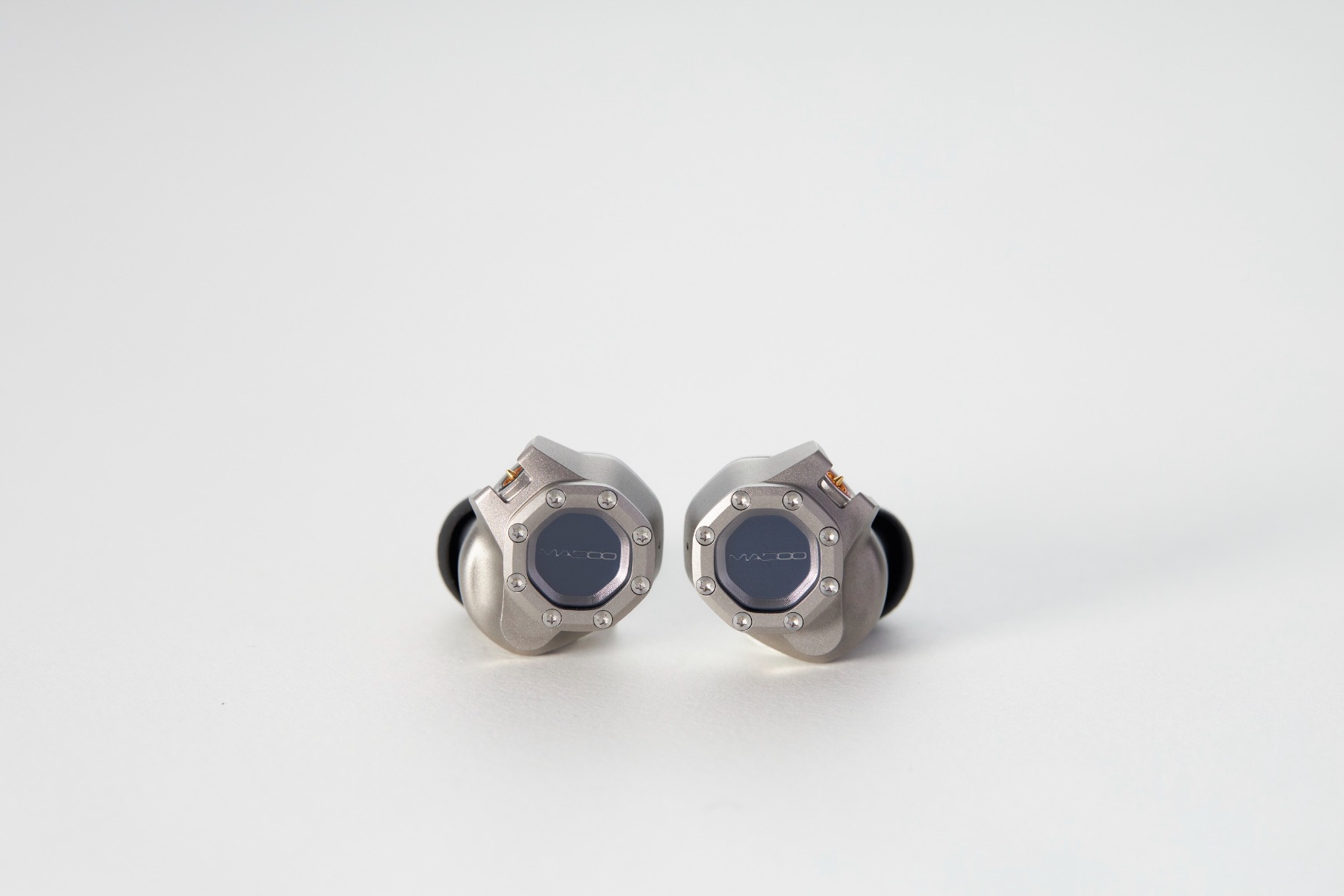

For the Typ821, MADOO redesigned the window to reflect a second-generation visual identity. As indicated by its “800 series” designation, the model now features 8 visible screws evoking submarine hatch windows—creating a distinctive design that symbolizes MADOO’s next-generation direction.

Custom Cable Assembly by Acoustune

The included earphone cable is a 4-core design (2 cores × 2) using silver-coated copper wire, custom-made by MADOO’s sister brand, Acoustune. This construction minimizes signal loss, allowing the earphones to perform at their highest capability.

The connector section uses Pentaconn Ear connectors from Nippon Dics Corporation—known for their high reliability and conductivity. Compared to traditional MMCX connectors, Pentaconn Ear offers closer contact between plug and socket for improved transmission and ease of use, while maintaining durability.

MADOO supplies the product with two standard cables: the “MRC011” (3.5mm L-shaped gold-plated plug) and the “MRC023” (4.4mm L-shaped gold-plated plug).
