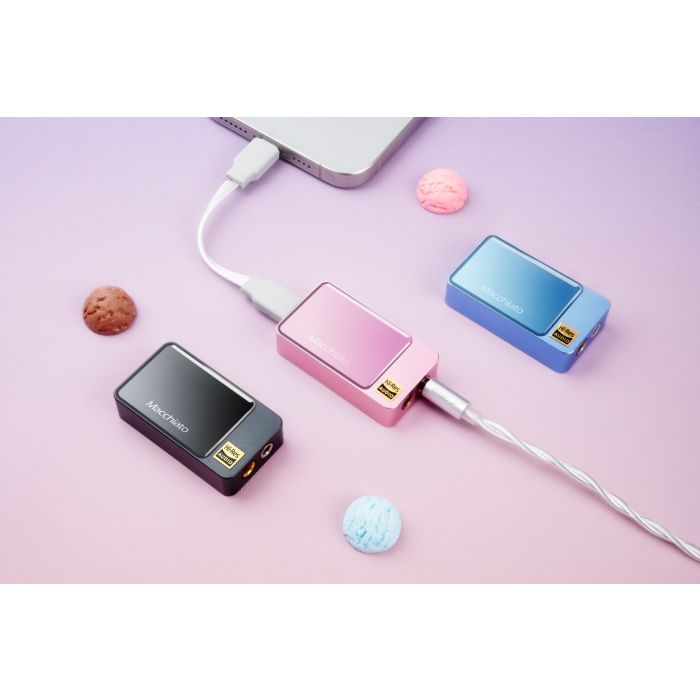

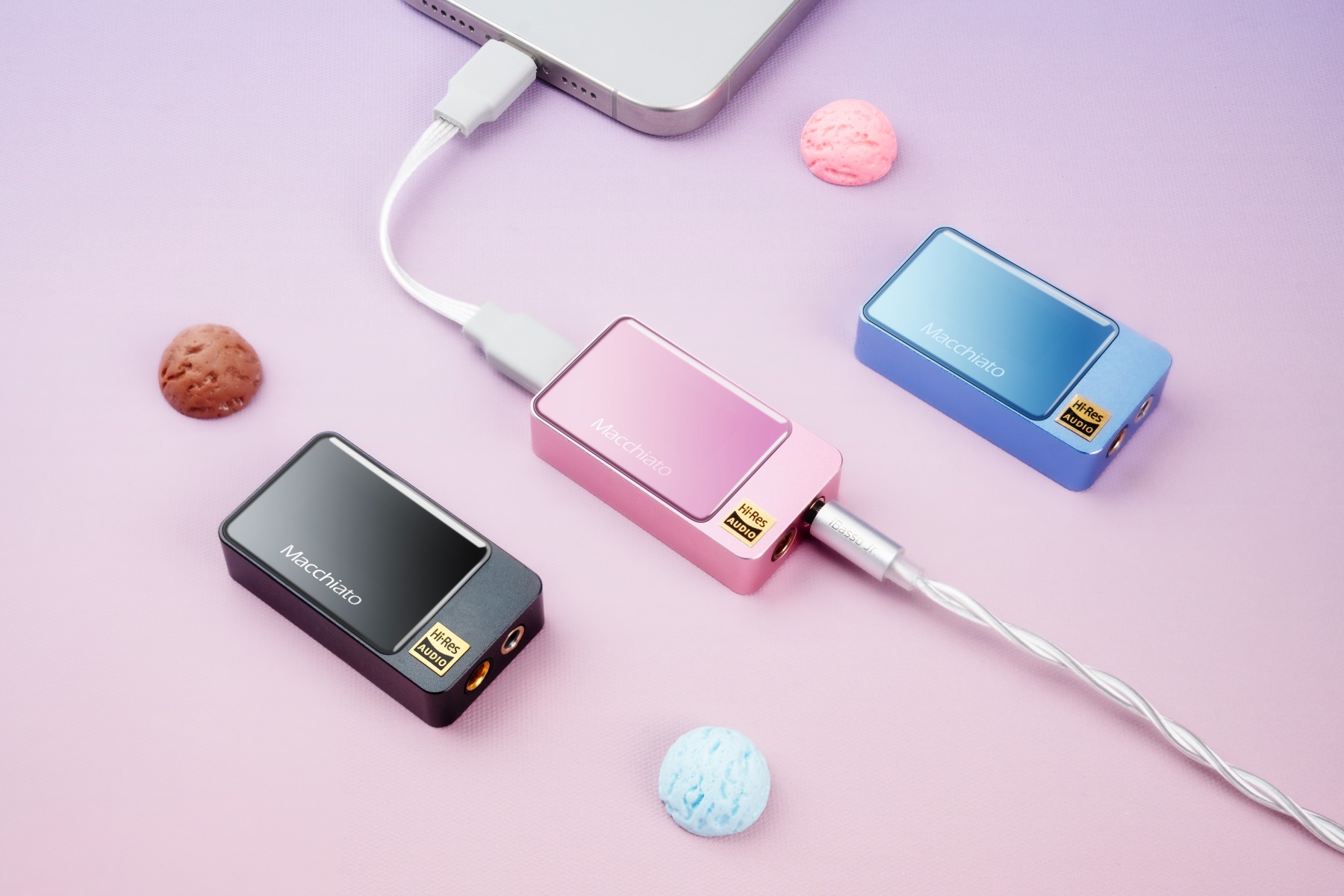

iBasso Macchiato Portable DAC/AMP
IBASSO
Description / iBasso Macchiato Portable DAC/AMP
High-End Sound That Fits in Your Pocket
Modern TWS earbuds trade sound quality for portability, leaving music sounding flat, compressed, and lacking emotion. The Macchiato changes everything. Plug and play with your wired IEMs to experience deeper bass, cleaner vocals, and a vibrant, lifelike atmosphere.
Seamless Communication & Gaming Performance
The Macchiato is more than a music device; it is a complete multimedia solution. The 3.5 mm interface supports microphone calls, allowing communication for work, gaming, or video chats.
UAC 1.0 / 2.0 Dual Protocol Support
UAC2.0 and UAC1.0 protocols can be switched at will, ensuring broad compatibility across multiple device platforms. The 3.5mm interface also supports SPDIF output.
UAC2.0 Mode: Connects seamlessly to iOS, Android, and other mobile devices, as well as Windows, Mac OS, and Linux computers.
UAC1.0 Mode: Instantly transforms into an external sound card for gaming consoles like Switch 2 and PS5.
SPDIF Mode: Achieves 32bit/384kHz digital signal transmission. Turning your phone into a professional digital transport.
Advanced PEQ with the iBasso UAC App
Unlock the full power of your sound with iBasso’s feature-rich Android APK. Powered by audiophile-grade DSP, Macchiato includes a brand-new 8-band Parametric EQ, allowing precision tuning for any listening preference.
Features
- Dual CS43131 Flagship DAC
- 580mW+580mW@32Ω, Fully Balanced Amplifier
- Femtosecond Crystal Oscillators
- PCM32bit/384kHz, Native DSD256x
- 0.96inch OLED Screen with Button Operation
- Android APK with 8 Bands Parametric EQ
- Supports Microphones
- 4.4mm and 3.5mm Output
- Silver-plated Mono Crystal copper USB C to C cable
- UAC1.0+UAC2.0 Dual Protocol
Product Inclusions
Macchiato DAC
USB-C to USB-Cable
User manual
Specifications
| Specification | Details |
|---|---|
| DAC Chipsets | Dual Cirrus Logic CS43131 |
| PCM | Up to 32bit/384kHz |
| DSD | Native DSD 256x |
| Weight | 21.6g |
| Size | 49.6mm27.6mm12.9mm |
| 4.4mm Balanced Output: | |
| Frequency Response | 5Hz-80kHz -0.5dB |
| THD+N | -118dBA（300Ω load） / -105dBA（32Ω load） |
| S/N | 131dB |
| Dynamic Range | 132dB |
| Output Voltage | 5Vrms |
| Output Power | 580mW+580mW@32Ω |
| Output Impedance | <0.05Ω |
| Crosstalk | 145dB |
| 3.5mm Single-ended Output: | |
| Frequency Response | 5Hz-80kHz -0.5dB |
| THD+N | -115dBA（300Ω load） |
| S/N | 127dB |
| Dynamic Range | 128dB |
| Output Voltage | 2.5Vrms |
| Output Power | 195mW+195mW@32Ω |
| Output Impedance | <0.05Ω |
| Crosstalk | 136dB |
