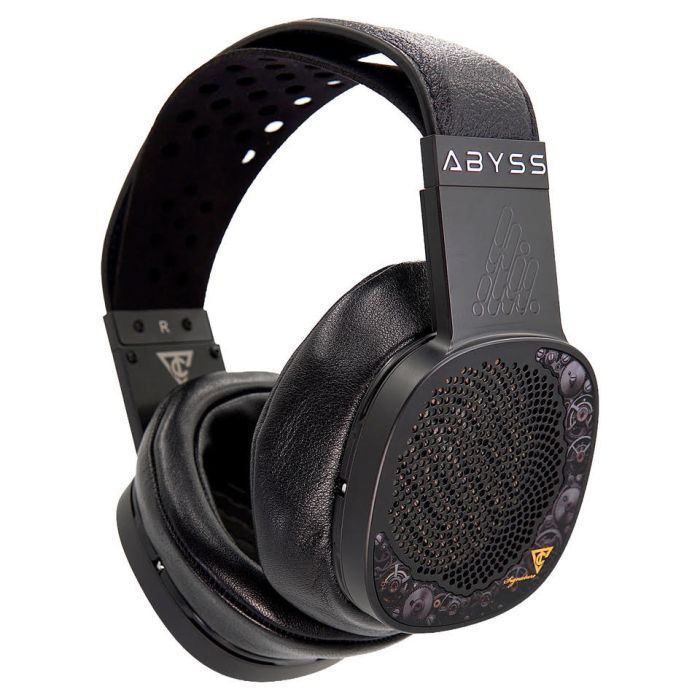

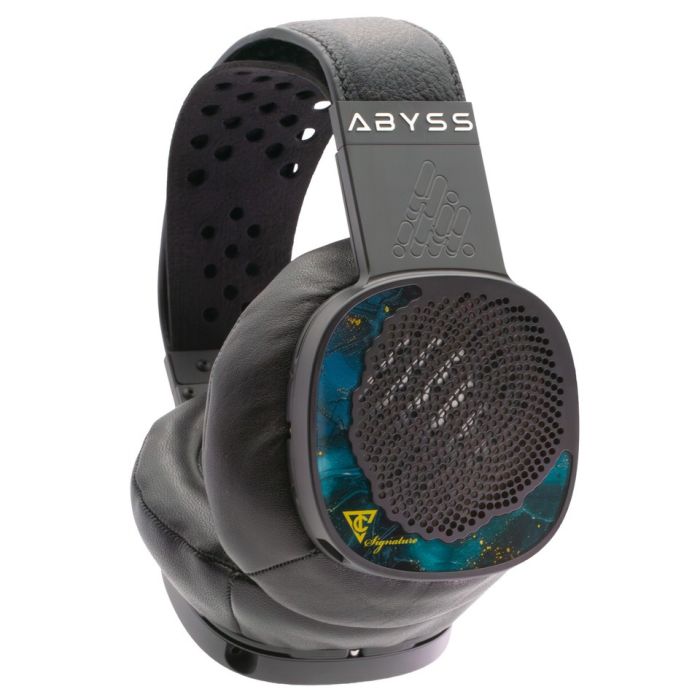

Diana TC Signature Open Back Planar

ABYSS
SKU:  DIANATCSIG-KIT
New

$8,099.00
Contact for availability

Diana TC Signature was developed specifically for the most experienced listener and audiophile who appreciates listening to music at the highest levels of resolution and refinement.

Abyss Diana TC Signature builds off of the retired Diana TC model and includes all the latest comfort and refinements of the current Abyss Diana line-up; light weight, headband suspension sling, and pillow top ear pads including the very popular bass ported option in the box. The machined aluminum side frames on this Signature model were further refined for even lighter weight and acoustically matched to a newly designed next generation Abyss TC planar speaker driver to move more air and deliver a greater sense of space and impressive low frequency bass extension below 20Hz, even with bass porting or a break in seal. TC Signature has a bass response and fullness akin to to the Abyss 1266 TC in a compact, comfortable, formfitting luxury audiophile headphone.

Overall, the sound is similar to listening to a highly refined, detailed yet smooth 2 channel speaker system with a more intimate acoustic, and can easily supplement or replace the finest in loudspeakers for those downsizing or needing to relax without waking the family or neighbors. Abyss Diana TC Signature is designed for the finest audio systems, tubes or solid state.

The optional custom hand-made JPS Labs Superconductor HP headphone Complete cable set upgrade is highly recommended to maximize resolution and ergonomics with a soft supple cable designed specifically for this headphone. JPS Labs has been making custom high performance cables for over 30 years.


Features

  • Aircraft-grade aluminum
  • Next generation Abyss TC Signature 63 mm planar speaker drivers
  • Leather headband with Ultrasuede® sling suspension
  • Pillow-top ear pads hand-assembled in US
  • High-tech oven cured polymer-ceramic finish with Corning Gorilla Glass custom artisan inlay
  • Custom hard carry case with velvet-lined interior
  • Optional custom hand-made JPS Labs Superconductor HP cable upgrade (Complete set)

Product Inclusions

  • ABYSS Diana TC Signature Headphone
  • Lambskin Pillow-Top Lambskin Bass Ported Ear Pads (installed)
  • ABYSS Diana Headphone Cable (choice of length and connector type)
  • Custom Hard Carry Case with Velvet Interior
  • Quick-start Instruction Card

Specifications

Color Black Tourbillon
Speakers ABYSS custom TC Signature 63 mm Planar Magnetic Transducer
Impedance 72 Ω nominal
Recommended amplifier power 2-8 watts (@50 ohms)
Sensitivity 90 dB/mW
Frequency Response 5 Hz – 58 KHz
Distortion 0.025 % THD
Weight 369 g (with stock ear pads) / 299 g (headphone only)
Supplied Cable JPS Labs high-quality headphone cable with choice of 3.5 mm, 6.3 mm (¼″), 4-pin XLR or 4.4 mm balanced plug. Optional Superconductor HP headphone cable upgrade if ordered as a Complete set.
