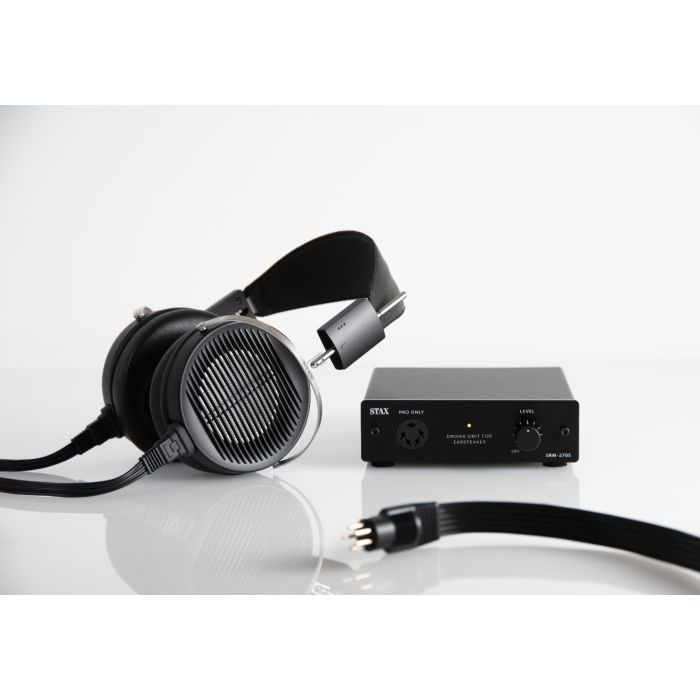

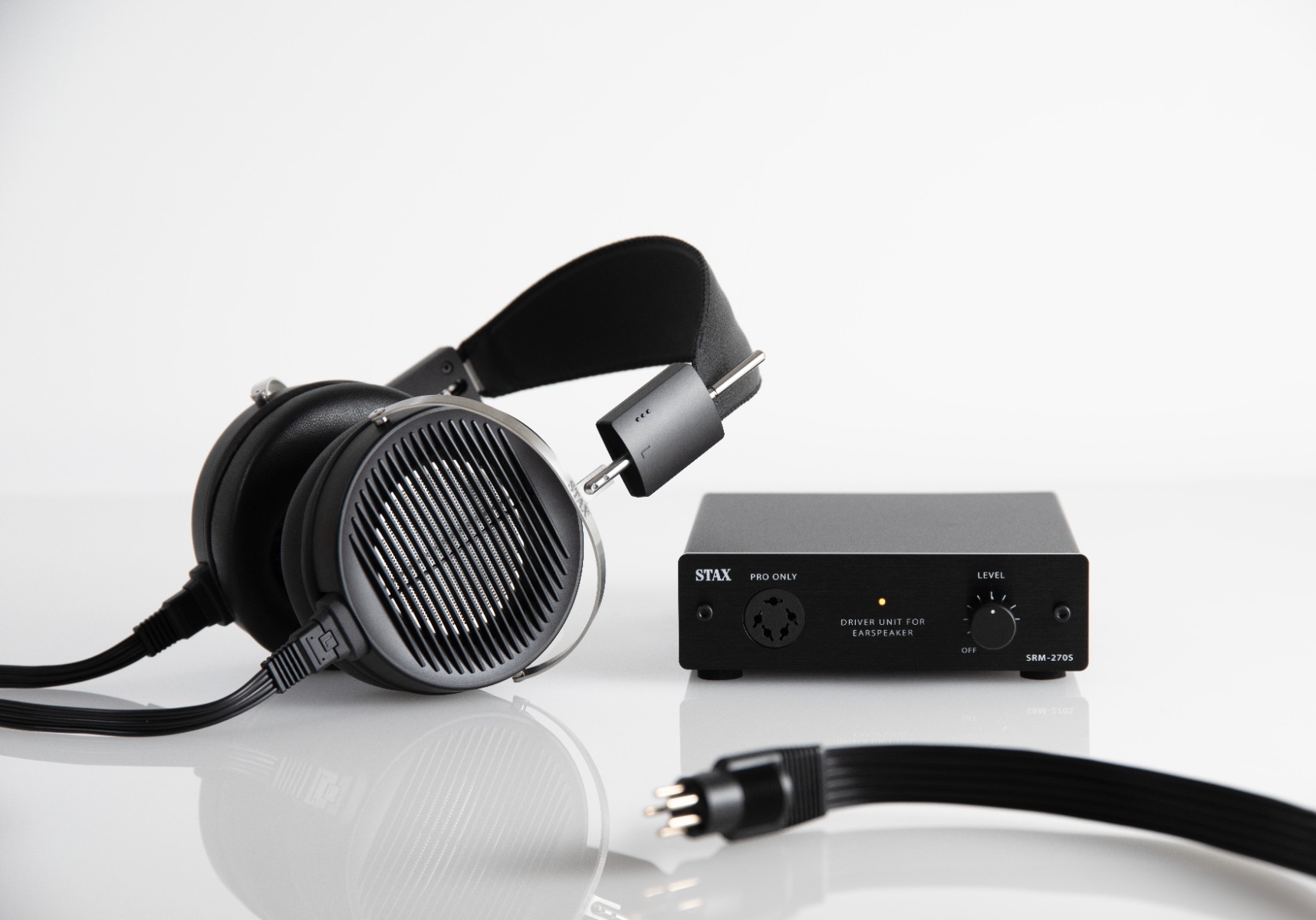

Description / STAX SRS-X1000 Electrostatic Speaker System Bundle
| The SRS-X1000 is a system bundle which includes STAX SR-X1 electrostatic ear speakers, and the STAX SRM-270S electrostatic driver unit. A source (DAC or other device) is required to provide audio for this system. |
Designed for audiophiles eager to delve into the world of electrostatic earspeakers without compromise, the SRS-X1000 stands as a beacon of innovation and quality. As the successor to the long-standing SRS-3100 electrostatic audio system, it pairs the brand new SR-X1 earspeakers with the newly developed SRM-270S driver unit, setting a new benchmark for entry-level electrostatic audio system.
STAX SR-X1 Electrostatic Ear Speaker
The SR-X1 embodies a perfect fusion of tradition and innovation, offering an accessible yet uncompromised entry into the elite world of electrostatic earspeakers. Whether you're a long-time audiophile or exploring high-fidelity sound for the first time, the SR-X1 provides an unparalleled listening experience.
SR-X1 Earspeakers offer a pure and immersive sound experience with:
- Wide Frequency Response: Ranging from DC to 35,000Hz for full-spectrum audio reproduction.
- Minimal Distortion: Harmonic distortion of 0.01% or less ensures crystal-clear sound.
- Lightweight: 234g weight design ensures long term wearing comfort
STAX SRM-270S Elecrostatic Driver
The SRM-270S has updated the design of the previous model (SRM-252S), including a higher quality RCA pin jack, a 3mm thick front aluminum panel, and an extruded aluminum case with increased size and improved heat dissipation. The first stage of the amplifier is selected from the latest low-noise FET, and the output stage is equipped with a refined emitter follower circuit. The latest design know-how from recent driver development trends is condensed into a compact housing. It is equipped with parallel output terminals for input and output, so it can be easily combined with your current system.
- Enhanced Heat Dissipation: A 3mm-thick front aluminum panel and a larger aluminium extrusion case for effective heat management. aluminum case for effective heat management.
- High-Grade Connectivity: RCA pin jacks and a 3mm-thick front aluminum panel ensure a pristine connection.
- Low Noise FET: Selected for the First Stage amplifier, paired with a refined emitter follower circuit in the Output Stage for unparalleled clarity.
- Compact Chassis: Easy for placement, transportability and aesthetic appeal
- Flexible Installation: PARALLEL OUT terminals facilitate easy incorporation into your existing audio system, whether for music enjoyment or enhancing movie experiences at your desktop or bedside.
Specifications
SRS-X1 Earspeaker Specifications
| Type | Push-pull electrostatic circular speaker, rear-opening enclosure |
| Unit Shape | Medium-sized circular |
| Fixed electrodes | High-precision etched electrodes |
| Playback frequency range | 7-41,000Hz |
| Capacitance | 110pF (including attached cable) |
| Impedance | 145kΩ (at 10kHz/including 2.5m attached cable) |
| Sound pressure sensitivity | 101dB/100Vr.m.s. input/1kHz |
| Bias voltage | 580V DC |
| Cable conductor | OFC |
| Cable shape | Parallel 6-core, wide low capacitance cable, 2.5m |
| Earpads | Genuine sheepskin leather (skin contact area), artificial leather (attachment area) |
| Weight | 234g (main unit only) |
SRM-270S Electrostatic Driver Specifications
| Frequency response | DC to 35,000Hz / +0, -3dB |
| Harmonic distortion | 0.01% or less / 1kHz 100V r.m.s. |
| Amplification | 58dB (800 times) |
| Maximum output voltage | 280V r.m.s. / 1kHz |
| Input impedance | 25kΩ |
| Input terminals | RCA x 1 |
| Output terminal | Parallel out x 1 |
| Bias voltage | 580V DC |
| Power supply | AC adaptor included |
| Power consumption | 12VDC / 500mA |
| External dimensions | 132(W)×38(H)×153(D)mm (excluding protruding parts) |
| Weight | 540g (main unit only) |
