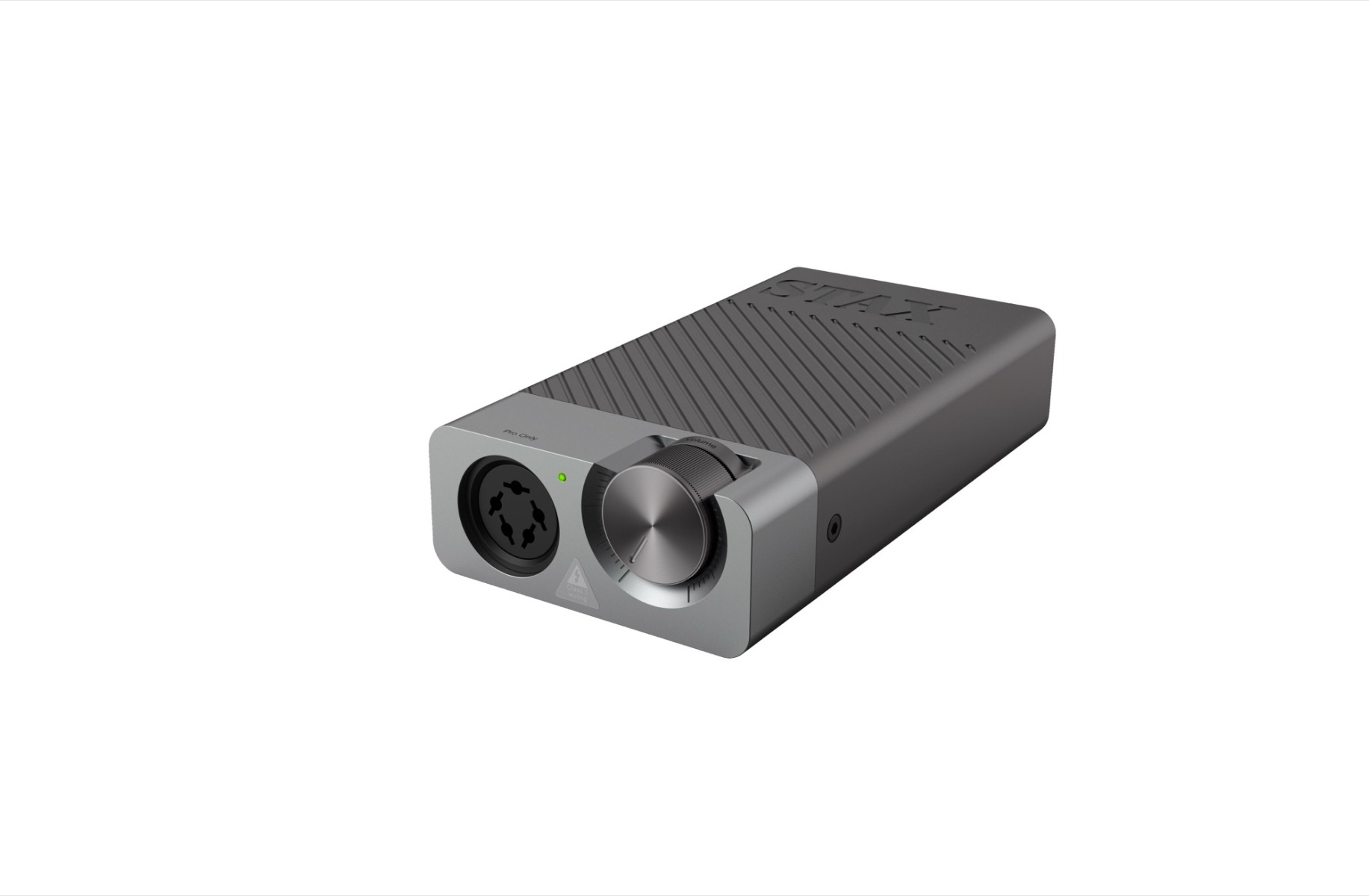

STAX SRM-D10 II Portable Electrostatic Driver
STAX calcActive())">
Description / STAX SRM-D10 II Portable Electrostatic Driver
The STAX SRM-D10 II portable electrostatic STAX driver redefines audio excellence by combining cutting-edge technology and superior craftsmanship. Designed to provide audiophiles and professionals with the ultimate sound experience in a portable package, the SRM-D10 II boasts a range of exceptional features:
- Enhanced Sound Quality: The SRM-D10 II utilizes hardware decoding and high-quality audio capacitors to deliver unparalleled sound quality, ensuring every note is crisp and every detail is vivid. A considerable number of resistors and capacitors that have a direct impact on sound quality have been upgraded from the original SRM-D10. The result is a clearer and brighter sound profile, with subtle adjustments that ensure a consistently vibrant audio output.
- AKM DAC: The SRM-D10 II now features an AKM 4493 DAC for rich and clean output thanks to AKM's acclaimed VELVETSOUND architecture.
- DSD and PCM Support: With support for DSD sampling rates up to DSD256 and PCM sampling rates up to 384kHz/32bit, the SRM-D10 II can faithfully reproduce high-resolution audio formats, preserving the artist's original intention. Native DSD is now supported via PC driver.
- High-Quality Power Amplifier: The SRM-D10 II is equipped with a high-quality power amplifier, providing outstanding performance and remarkable power, allowing you to experience music in its purest form.
- High Voltage Output: A robust DC 580V DC bias enhances the amplifier's output, resulting in a more dynamic and powerful soundstage.
- Rugged Aluminium Alloy Shell: The aluminium alloy shell not only exudes a sleek, modern design but also offers higher strength and corrosion resistance, ensuring the SRM-D10 II is built to last.
- Versatile Connectivity: The SRM-D10 II supports both USB-C digital and 3.5mm analog audio inputs, offering flexibility in connecting to a wide range of devices.
- Compatibility: Designed to complement all STAX PRO-type headphones, the SRM-D10 II ensures that you can enjoy the full potential of your earspeakers.
Product Inclusions
- STAX SRM-D10 II Electrostatic STAX Driver
- Power Cable
- User Manual
Specifications
Specifications
| Rated Input Level | 230mW (100V output) |
| Maximum input level | 10V (minimum volume in Line In input) |
| Gain | 53dB (450 times) |
| Harmonic distortion | ≤0.025% / 1kHz-10kHz |
| Input impedance | 10KΩ (Line In input) |
| Maximum output voltage | 200Vr.m.s / 100Hz-10kHz |
| Supply Voltage | DC 5V/9V/12V/15V |
| Power consumption | 6.4W (USB input) 5W (Line In input) |
| DSD Support | Up to DSD256 |
| PCM Support | Up to 384kHz/32bit |
| Amplifier | High-Quality Power Amplifier |
| Output Bias | DC 580V |
| Shell Material | Aluminium Alloy |
| Input Options | USB-C Digital, 3.5mm Analog |
| Compatibility | Suitable for all STAX PRO-type headphones |
