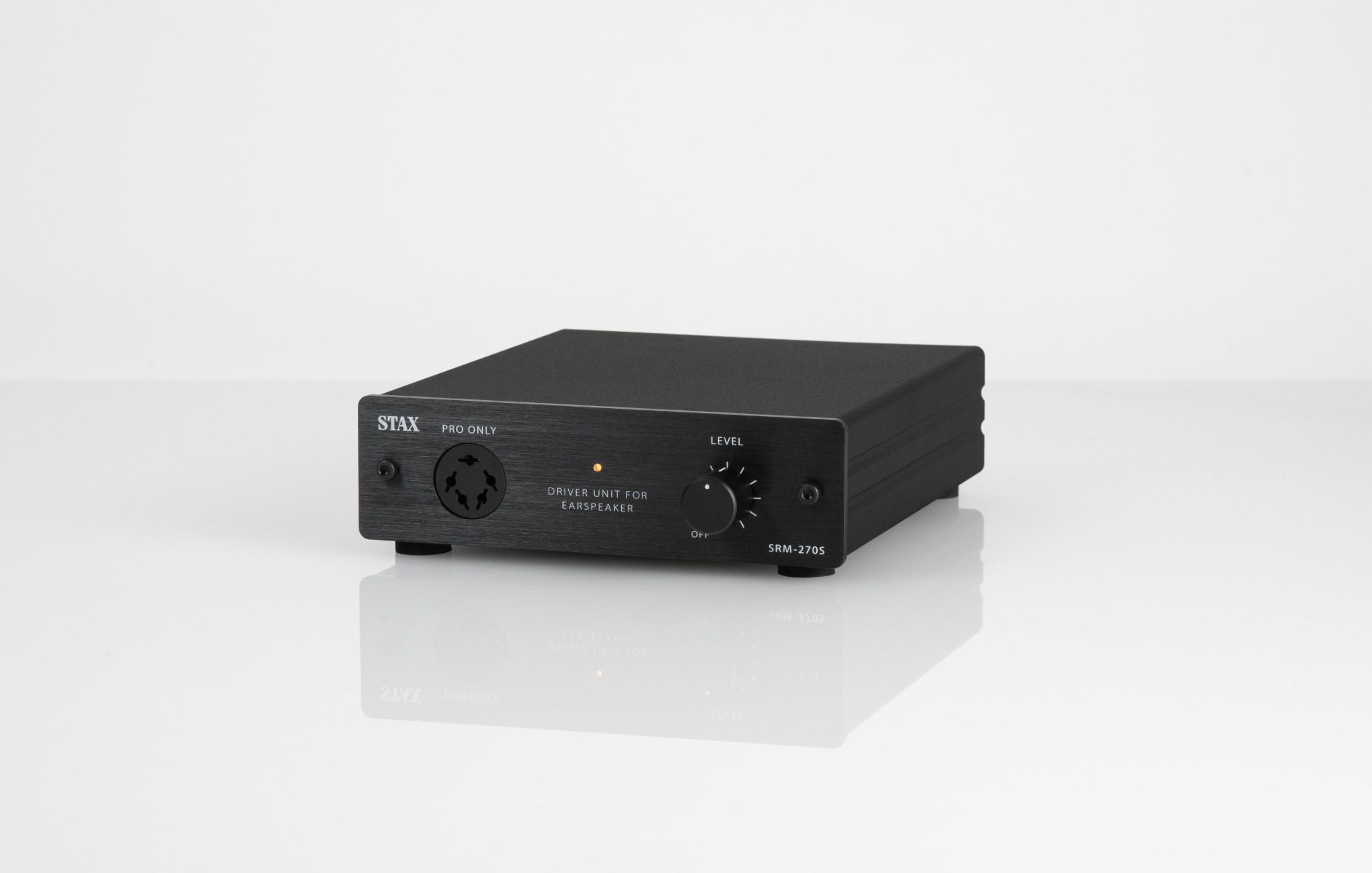

STAX SRM-270S Elecrostatic Driver
STAX
Description / STAX SRM-270S Elecrostatic Driver
| SRM-270S is an electrostatic driver designed for use with elecrostatic ear speakers such as SRS-X1. It is not compatible with standard headphones. |
The SRM-270S has updated the design of the previous model (SRM-252S), including a higher quality RCA pin jack, a 3mm thick front aluminum panel, and an extruded aluminum case with increased size and improved heat dissipation. The first stage of the amplifier is selected from the latest low-noise FET, and the output stage is equipped with a refined emitter follower circuit. The latest design know-how from recent driver development trends is condensed into a compact housing. It is equipped with parallel output terminals for input and output, so it can be easily combined with your current system.
Features
- Enhanced Heat Dissipation: A 3mm-thick front aluminum panel and a larger aluminium extrusion case for effective heat management. aluminum case for effective heat management.
- High-Grade Connectivity: RCA pin jacks and a 3mm-thick front aluminum panel ensure a pristine connection.
- Low Noise FET: Selected for the First Stage amplifier, paired with a refined emitter follower circuit in the Output Stage for unparalleled clarity.
- Compact Chassis: Easy for placement, transportability and aesthetic appeal
- Flexible Installation: PARALLEL OUT terminals facilitate easy incorporation into your existing audio system, whether for music enjoyment or enhancing movie experiences at your desktop or bedside.
Specifications
| Frequency response | DC to 35,000Hz / +0, -3dB |
| Harmonic distortion | 0.01% or less / 1kHz 100V r.m.s. |
| Amplification | 58dB (800 times) |
| Maximum output voltage | 280V r.m.s. / 1kHz |
| Input impedance | 25kΩ |
| Input terminals | RCA x 1 |
| Output terminal | Parallel out x 1 |
| Bias voltage | 580V DC |
| Power supply | AC adaptor included |
| Power consumption | 12VDC / 500mA |
| External dimensions | 132(W)×38(H)×153(D)mm (excluding protruding parts) |
| Weight | 540g (main unit only) |
