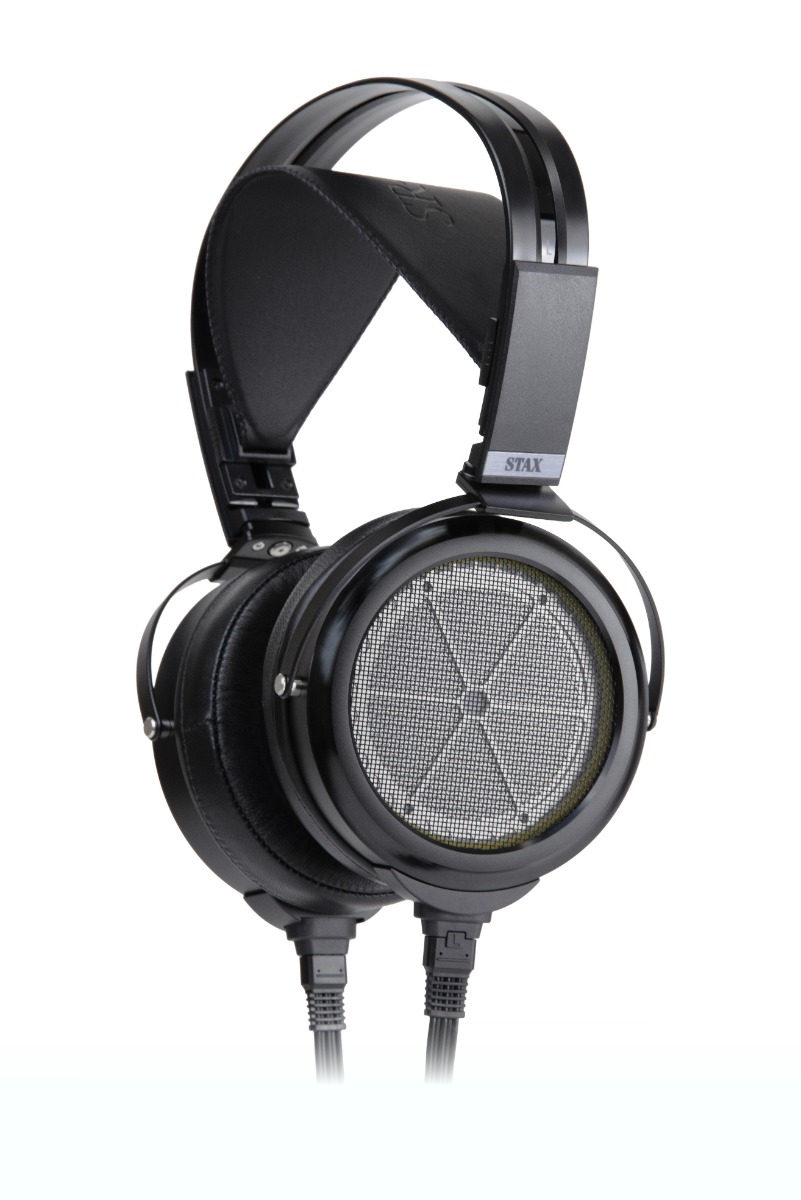

Stax SR-009D Electrostatic Earspeaker
STAX
- Australian Stock & Warranty
- Authorised Reseller
- Free Shipping
Found a lower price?
Please complete the form below.
Price found at another internet retailer or their store:
This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.
This is a request only. We have the right to refuse any request at our discretion. We only accept requests from stores that have brand new stock and are authorized dealers. We do not accept requests from auction sites and marketplaces.

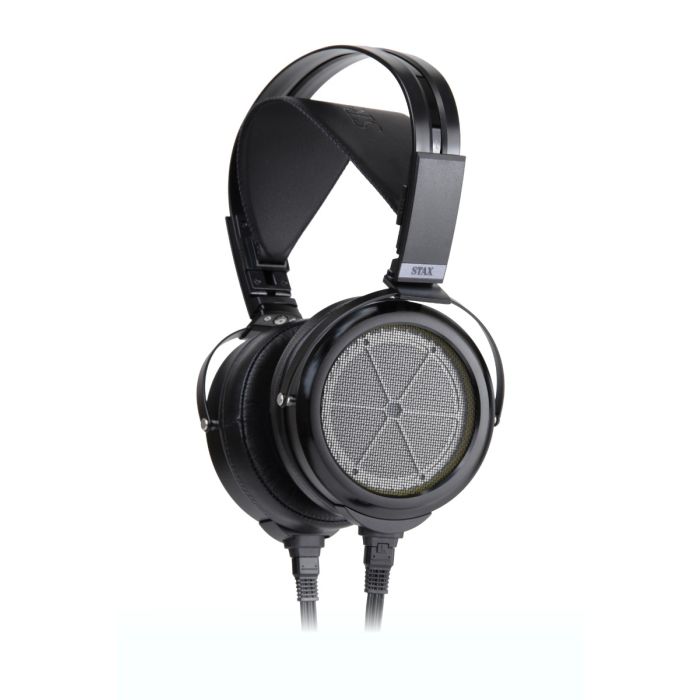

Description / Stax SR-009D Electrostatic Earspeaker
The SR-009, the origin of STAX’s current high-end models, has made a triumphant return. After its production ceased with the arrival of a new flagship, countless requests from fans worldwide have brought this legendary earspeaker back. The SR-009D is a reincarnation of the iconic model that led the high-end headphone culture for a long time, now available at a more accessible price with updated features, making it the perfect gateway to the world of high-end electrostatic audio.


Advanced Technology for Unparalleled Sound

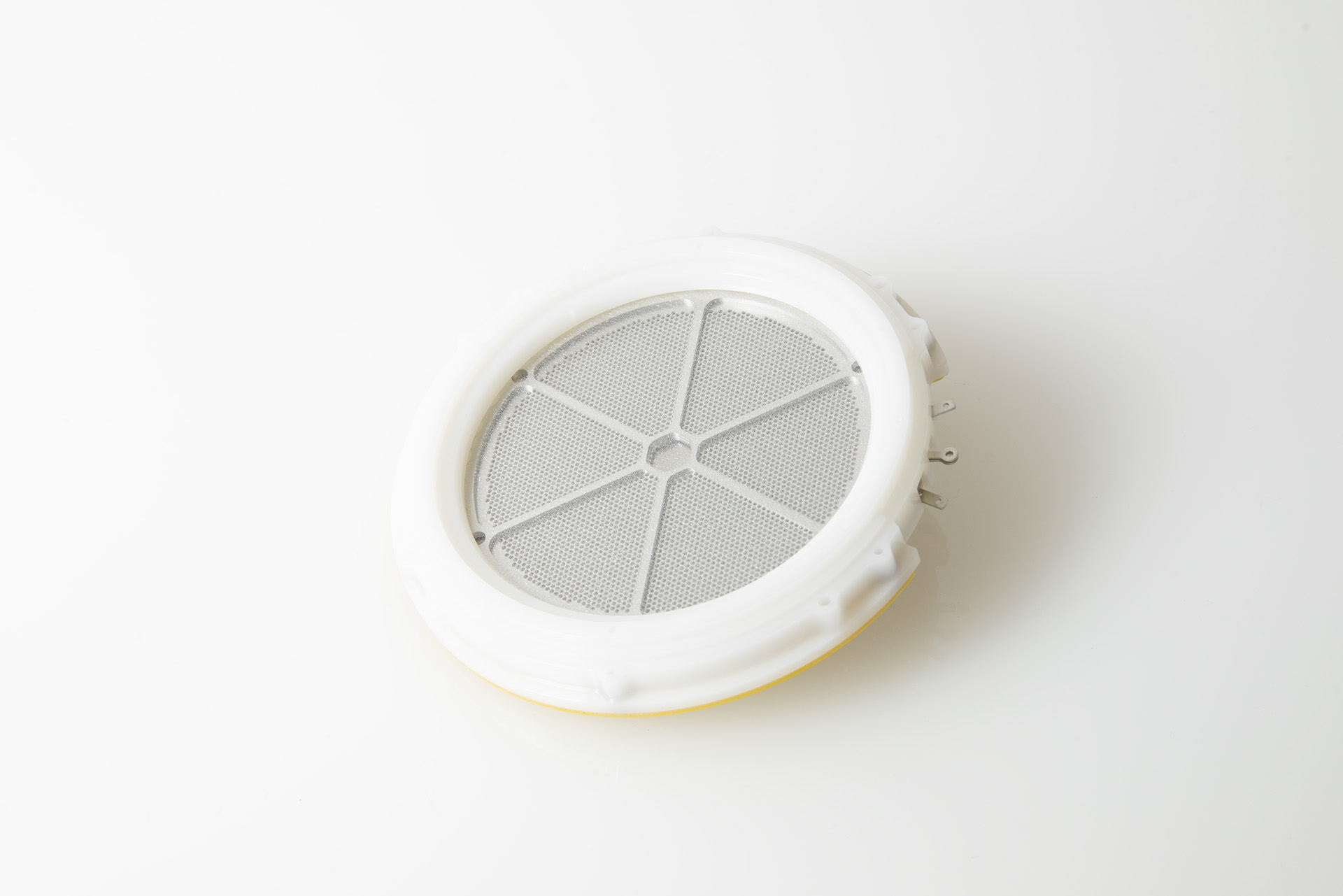

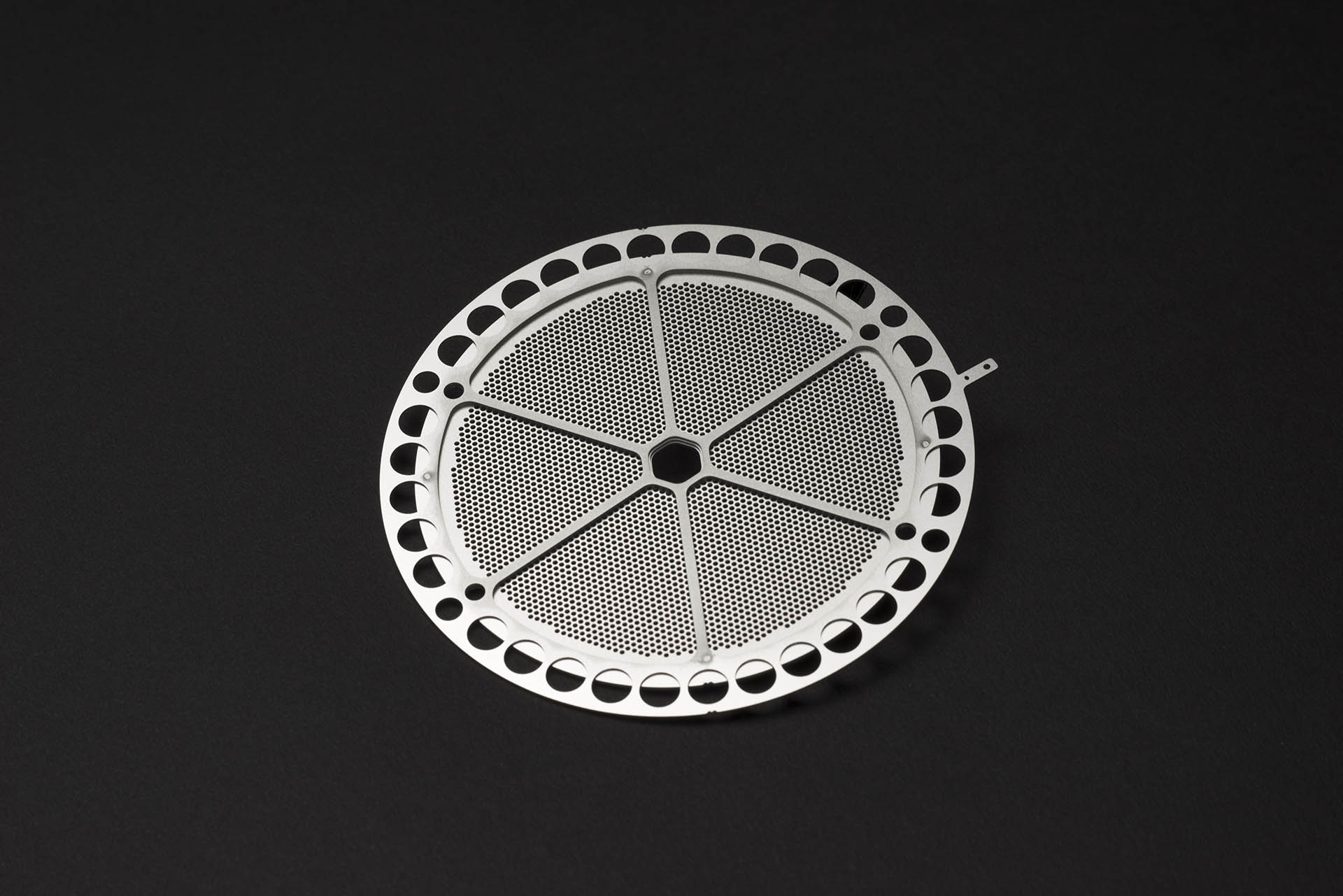

At the core of the SR-009D is the MLER (Multi-Layer-Electrode) technology, a groundbreaking innovation that originated with the SR-009. This technology utilizes a fixed electrode formed by unifying three stainless steel plates at the atomic level through thermal diffusion bonding, without the use of any adhesives. This process results in a fixed electrode with exceptional planarity, low resonance, and high sound wave transmission, delivering a sound that is both incredibly detailed and transparent, setting a new standard for audio reproduction.




Enhanced Usability and Modern Design

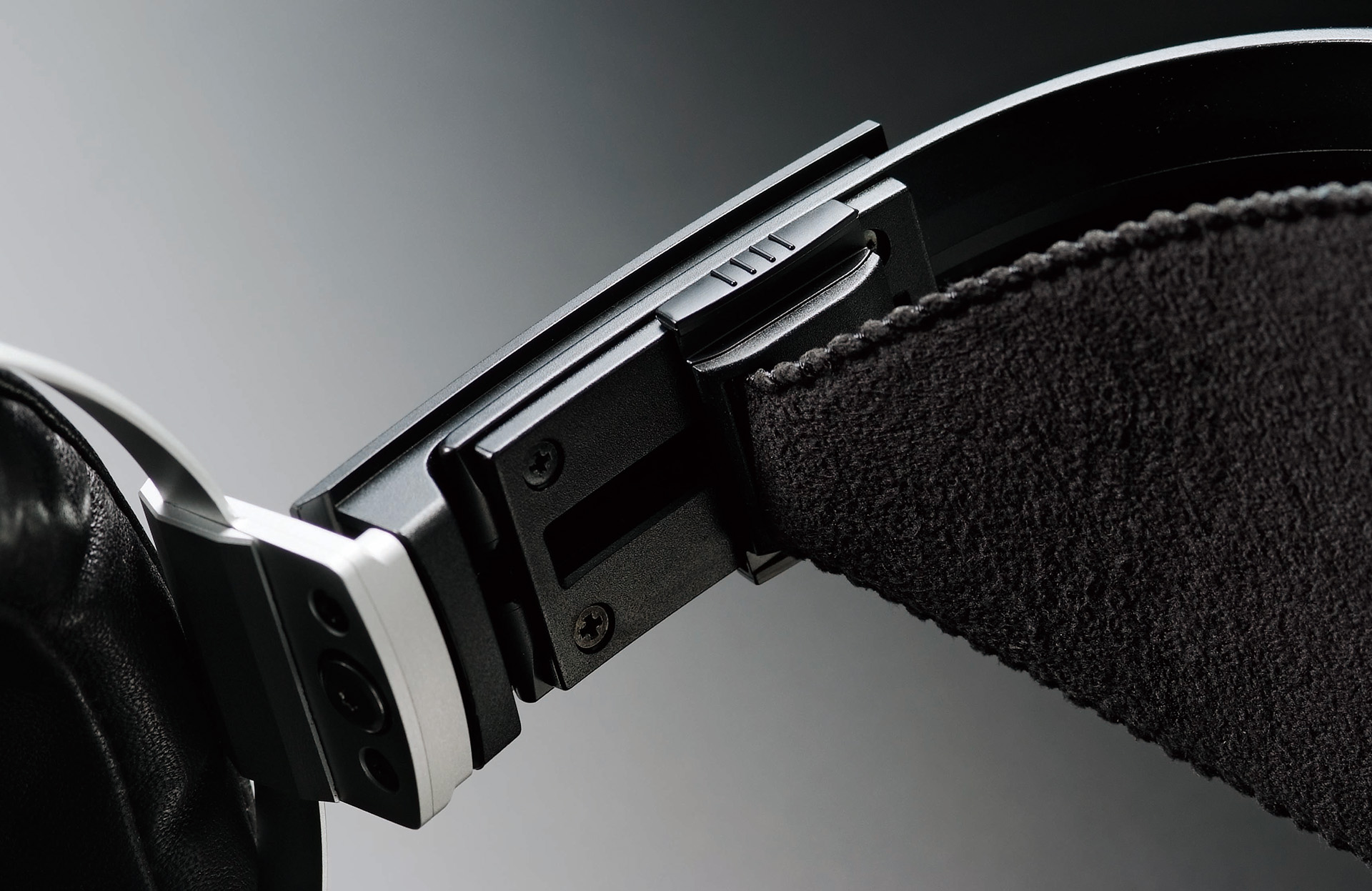

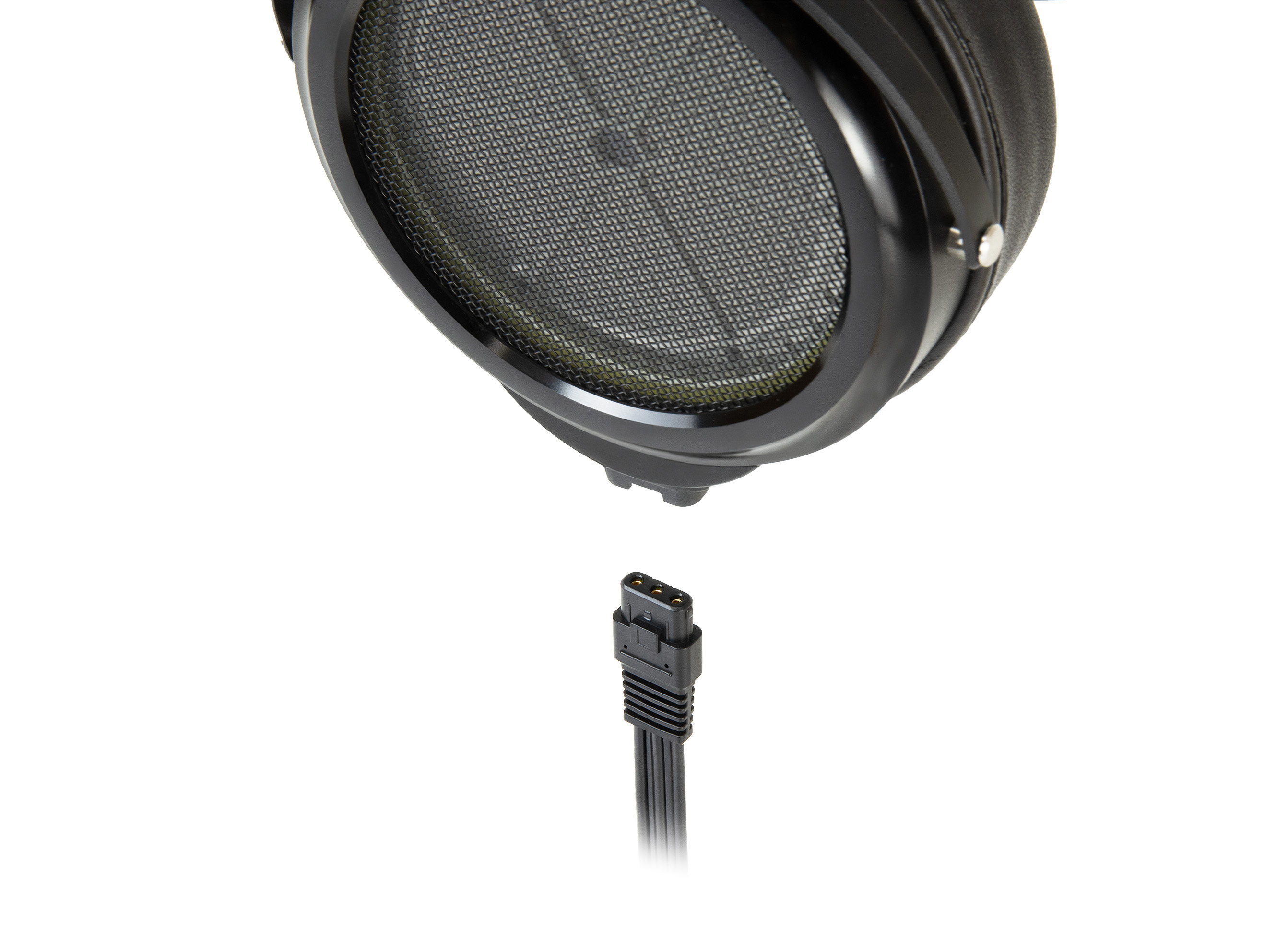

The SR-009D features a detachable and replaceable cable structure, a standard in the current STAX lineup, which enhances usability and allows for future upgrades and easy maintenance. The newly developed injection-molded unit case reduces the overall weight of the earspeaker, ensuring a comfortable listening experience even for extended periods. The headpad features a 10-step click mechanism, allowing for a perfect fit for a wide range of head shapes. The body color, cable material, and unit case have also been updated from the original model, combining legendary performance with modern convenience.
Features
- MLER (Multi-Layer-Electrode) technology
- Detachable cable structure
- 10-step click mechanism headpad
Specifications
| Type | Push-pull electrostatic sound element, open-air type enclosure |
| Sound Element Shape | Large round shape |
| Frequency Response | 5 - 42,000Hz |
| Electrostatic Capacitance | 110pF |
| Impedance | 145kΩ |
| Sound Pressure Sensitivity | 101dB |
| Bias Voltage | 580V DC |
| Attached Cable Conductor | OFC |
| Cable | Parallel 6-strand, low-capacity wide cable |
| Cable Length | 2.5m |
| Ear Pad | Genuine sheep leather (skin touching portion), artificial leather (surrounding portion) |
| Weight | 452g (ear speaker) |
| Origin | Made in Japan |
