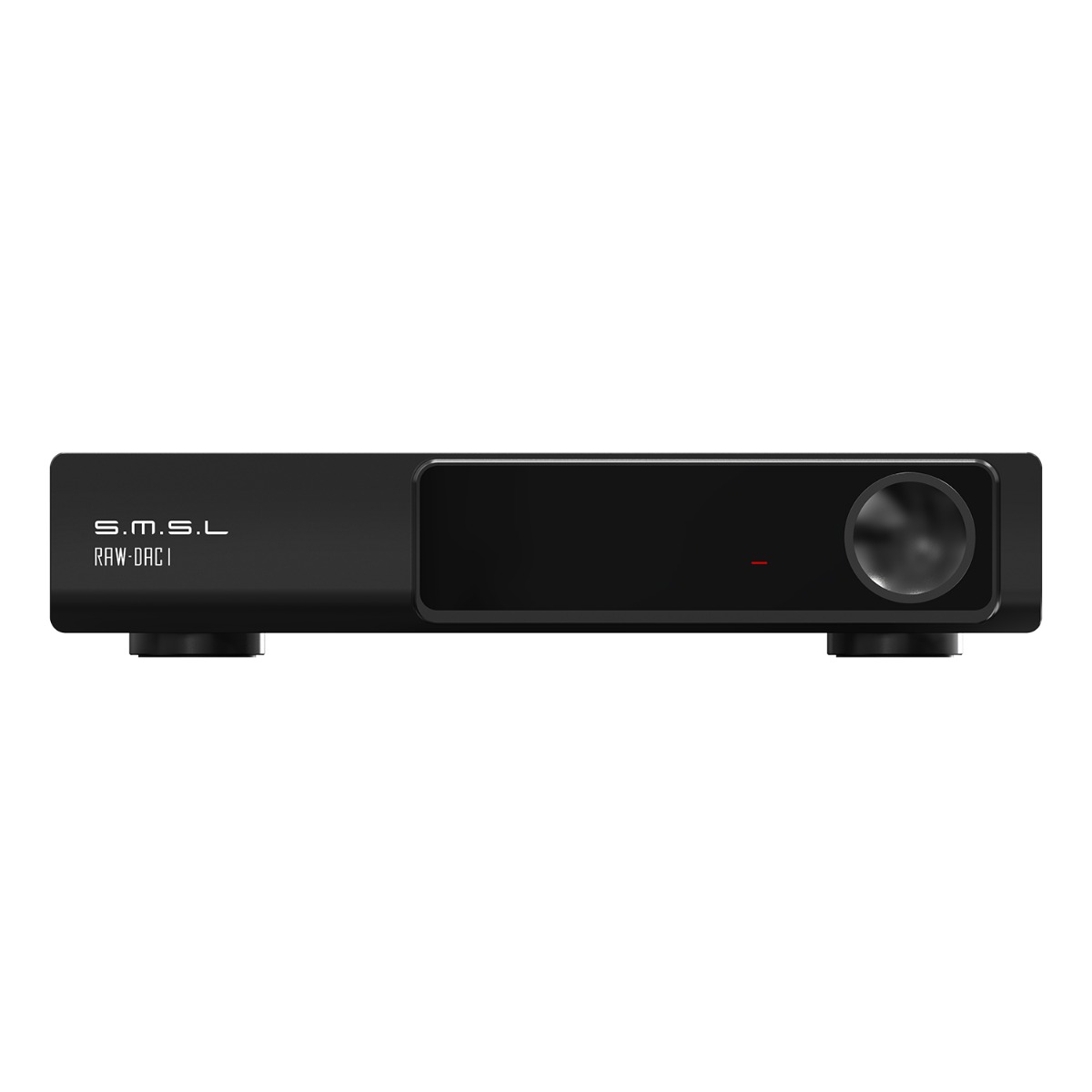

S.M.S.L. Audio RAW-DAC1 High Performance Desktop DAC
S.M.S.L. AUDIO
Description / S.M.S.L. Audio RAW-DAC1 High Performance Desktop DAC
The SMSL RAW-DAC1 is a standalone desktop DAC which uses AKM AK4191+AK4499EX chips to achieve extremely low distortion of 0.00006% (-124dB).
It features the XMOS XU-316 for true 32-bit USB processing, supporting DoP and Native DSD, and PCM up to 768kHz and DSD512.
A newly developed CK-03 clock processing circuit significantly reduces clock jitter.
The USB, optical, and coaxial inputs all support DSD transmission, with native DSD and DoP support via USB and DSD64 support with coaxial and optical inputs via DoP.
The device incorporates a tempered glass display panel for higher light transmission and longer service life.
A built-in low noise and shielded power supply enhances power efficiency and reduces power consumption.
RAW-DAC1 features a carefully designed linear regulated power supply with discrete components, and multiple low noise regulated power supply circuits provide low noise power.
The latest Bluetooth technology supports sound input with LDAC, APTX/HD, SBC, and AAC codecs.
The device is equipped with high-quality gold-plated input and output jacks.
Completing the RAW-DAC1 is a fully laminated 2.33-inch LCD screen, and a fully featured remote control.
With Japan Audio Society Hi-Res certification, the RAW-DAC1 is ready to be the centrepiece of your high resolution audio setup.
Specifications
| Input | USB / Optical x2 / Coaxial x2 / I2S / Bluetooth |
| Output | RCA/XLR |
| Line Output |
|
| THD+N | 0.00006% (-124dB Unweighted) |
| Dynamic Range |
|
| SNR |
|
| USB Spec | USB 2.0 Asynchronisation |
| USB Compatibility |
|
| Sampling rate and bit depth (USB) |
|
| Sampling rate and bit depth (Optical / Coaxial) |
|
| Bluetooth | 5.1 (SBC, aptX, aptX HD, LDAC) |
| Power Consumption | <10W |
| Standby Power | <0.5W |
| Size | 219x180x45mm (WxHxD) |
| Weight | 1.33kg |
