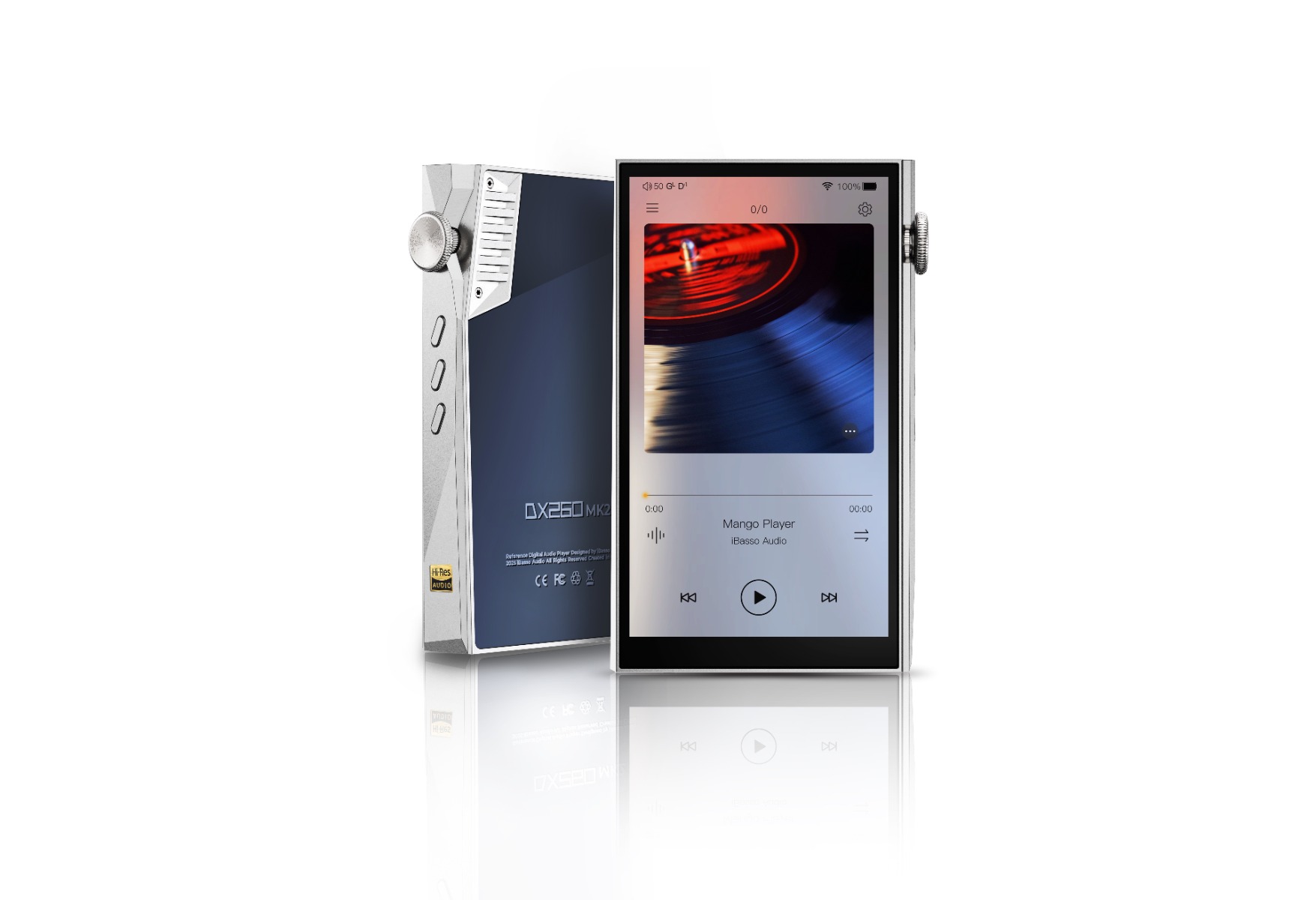

iBasso DX260MK2 Octa DAC Digital Audio Player

IBASSO
SKU:  iBasso DX260MK2 Octa DAC Digital Audio Player
Available for demo

$1,649.00
In stock Click & Collect
DX260MK2 vs DX260

The DX260MK2 is an update to the stellar DX260, with upgraded system internals, updated Android support and the same pristine sound. A Limited Edition Silver+White colour option is available, featuring a white glass back cover and limited to a run of 500 pieces.



  DX260MK2 DX260
SoC Snapdragon 665 (11nm) Snapdragon (14nm)
RAM+ROM 4G RAM + 128GB ROM 4G RAM + 64GB ROM
Memory Universal Flash Storage (UFS) eMMC
OS Android 13 Android 11
Colour Options Silver+White (Limited Edition) / Silver+Blue Silver / Black

CS43198 × Octa DAC Chip Matrix

The CS43198 DAC in the DX260MK2 features excellent dynamic range, outstanding resolution of micro details, and an impressively low noise floor, adding up to exceptional performance.

The Octa DAC Chip Matrix with iBasso's implementation guarantees both superb sound quality and DAP leading measurements. The DX260MK2 achieves a THD+N of -123dB, the best among portable players as of 2023. This groundbreaking achievement sets a new standard in the industry.

DX240MK2 takes advantage of the multi-DAC architecture to achieve extraordinary results.

FIR Filter - DAC Matrix Magician

Thanks to the new algorithm of FPGA-MASTER2.0, the potential of the CS43198 can be further realised.

Synchronous parallel output mode: this reduces "discrete distortion" between DACs to improve overall performance.

FIR 2x mode, FIR 4x mode: With FPGA-MASTER 2.0, picosecond-level precise control and adjustment of the DAC clock and data is achieved, making each DAC data stream independently adjustable. Through the "delay parallel" of 4 DACs, the DACs form a hardware analog FIR filter, which averages the differences between multiple DACs, reducing distortion and effectively improving sound details and realism.

Android13 + Mango OS with Snapdragon 665 Performance

The DX260MK2 comes with the latest Android 13 system running on an updated Snapdragon 665 SoC, allowing you to easily install streaming apps for a seamless Android experience. The DX260MK2 efficiently bypasses the SRC at the system level. Whether it's Mango Player or a third-party streaming APP, you can take advantage of the system-level "Non-SRC" feature giving you the highest quality sound from the recording.

The DX260MK2 features the alternative Mango OS, a Linux-based audio system that has been meticulously designed for exceptional audio playback. It has accumulated a lot of optimization to the underlying driver algorithms, which focuses on audio playback. This pure sound system has no WiFi or Bluetooth interference with lower EMI, resulting in a purer listening experience.

New Industrial Design + User Removeable Back Cover

The DX260MK2 features iBasso's latest industrial design, with volume control guards and a more industrial look.

The back cover is easily removable with total battery access making replacement of  the battery very convenient.


Product Inclusions

  • DX260MK2 Player
  • USB-C cable
  • Coaxial cable
  • TPU Case
  • Screen Protector
  • Warranty Card
  • Quick Start Guide

Specifications

General

Model DX260
Display

Sharp 5.0inch , 1080*1920 P, with on-cell capacitive touch panel

Audio Format Support APE, FLAC, WAV, WMA, AAC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD and DST
USB C USB 3.1
Output Ports
  • 4.4mm balanced headphone out + line out (switchable)
  • 3.5mm single ended headphone out + line out (switchable
  •  3.5mm coaxial output
  • USB OTG output
WiFi 802.11b/g/n/ac (2.4Ghz/5Ghz)
Bluetooth V5.0
RAM+ROM 4GB LPDDR4X RAM, 128GB ROM
Battery 4400mAh 3.8V li-polymer battery
Charging Time 2.5 hours
Play Time Up to 14 hours (playback time will vary with content format, volume used and different headphone/IEM loads)
Size 123*74.5*17.5 mm
Weight 229g



4.4mm Balanced Headphone Out

Maximum Output Level 6 Vrms
Output Power 1015mW @ 32Ohms, THD <0.5%
Frequency Response 10Hz~75kHz -1dB
S/N 133dB
THD+N
  • 121dB (A-wt, 600ohm load)
  • 114dB (A-wt, 32ohm load)
Crosstalk 145dB
Noise Floor

< 0.93mV (Low-Gain



3.5mm Single Ended Headphone Out

Maximum Output Level 3 Vrms
Output Power
  • 280mW + 280mW@32ohm
  • 586mW + 586mW@16ohmTHD0.1%
Frequency Response 10Hz~75kHz -1dB
S/N 128dB
THD+N
  • 115dB (A-wt, 600ohm load)
  • 110dB (A-wt, 32ohm load)
Crosstalk 118dB
Noise Floor

< 0.85mV (Low-Gain



4.4mm Balanced Line Out

Maximum Output Level 4 Vrms
Frequency Response 10Hz~75kHz -1dB
S/N 133dB
Dynamic Range

134dB

ThD+N -123dB
Crosstalk

-145dB



3.5mm Single Ended Line Out

Maximum Output Level 2 Vrms
Frequency Response 10Hz~75kHz -1dB
S/N 128dB
Dynamic Range

128dB

ThD+N -112dB
Crosstalk

-115dB
