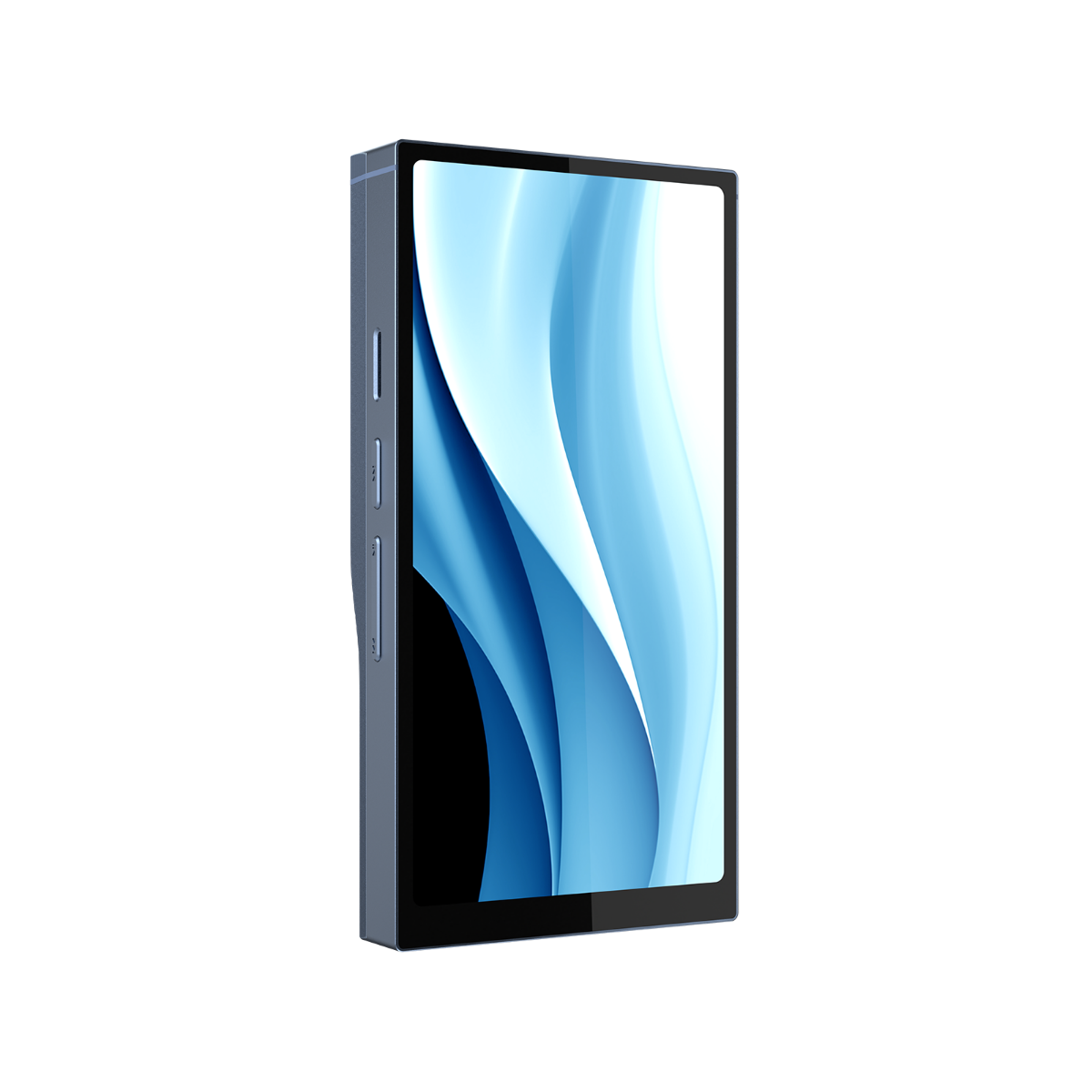

HiBy R6 Pro MAX Android DAP

HIBY
SKU:  R6PROMAX
Available for demo

$1,599.00
In stock Click & Collect

The HiBy R6 Pro MAX opens up a new tier of performance alongside the popular R6 Pro, with an upgraded DAC setup and higher output power.

The R6Pro MAX features two flagship ESS ES9039MS Pro DAC chips for class leading musical detail retrieval. 8-way indepdendent I/V conversion via OPA1612 chips in conjunction with HiBy's meticulous circuit design unleashes the full potential of the ESS flagship DACs.

The analog section of the HiBy R6Pro MAX features 2 handpicked OPA1622 chips paired with four ELNA electrolytic caps, providing fine detail with tube like warmth. A four-way independent power supply system was skillfully designed for the R6Pro MAX to maximise performance and minimise inteference. Realising an incredibly low 0.0003% THD even with the 4.4mm output at HIgh Gain, with a maximum output power of 678mW, HiBy achieves the goal of producing high power with low noise.

Support for PD 3.1 40w fast charging and up to 10 hours play time / 180 hours standby time mean that the R6Pro MAX is well suited for everyday use.

The flagship Qualcomm Snapdragon 665, 6GB RAM and modern Android 12 support, combined with HiBy's long standing experience with hardware and software integration ensures R6Pro MAX delivers fantastic inteference performance. 128GB ROM with storage expandable by MicroSD card ensures you can fit a large lossless music collection. Industry leading DSD1024 and PCM768kHz / 32 bit decoding means broad format support from now into the future.

The bold, curved chassis, combined with the R6Pro MAX's 5.9" high resolution (2160*1080) display with oleophobic coated Corning Gorilla Glass ensures that the HiBy R6Pro MAX looks as good as it sounds.

Experience the cutting edge of DAP design with the HiBy R6Pro MAX.

Features

  • Dual ES9039SM Pro
  • 8-way I/V Amplification
  • Flagship-grade analog components
  • Four-way Independent power supply system
  • 0.0003%THD
  • Large 8200mAh battery
  • 40W PD3.1 Fast charging
  • Qualcomm Snapdragon 665
  • 6GB RAM +128GB ROM
  • Open Android 12
  • System-wide SRC bypass
  • Femtosecond-grade audio oscillators
  • DSD1024 PCM768
  • MQA 16X unfolding
  • 5.9” 1080p large display
  • HiByCast system-wide remote control

Product Inclusions

  • 1 x R6 Pro MAX
  • 1 x PU Leather Case
  • 2 x Front Panel Screen Protector (1 pre-applied)
  • 1 x USB Type C to Type C Charging / Data Cable
  • 1 x Type C to Type A USB Adapter
  • 1 x User Guide
  • 1 x Warranty Card
  • 1 x QC Card

Specifications

Audio Specifications

Output Port

3.5mm LO

4.4mm LO

Voltage Swing

2.3Vrms

4.6Vrms

Minimum THD

0.0003%

0.0002%

Noise Floor

1.37UVrms

1.65uVrms

SNR

124dBrA

129dBrA

Channel separation

109dBrA

107dBrA

Frequency response

20Hz-90kHz

20Hz-90kHz



Output Port

3.5 PO

4.4 РО

Voltage Swing

2.39Vrms

4.72Vrms

Output power

179mW

697mW

Minimum THD

0.0006%

0.0003%

Noise floor

2.0uVrms

2.5uVrms

SNR

121dBrA

126dBrA

Dynamic range

122.5dB

126dB

Channel separation

70dBrA

109dBrA

Frequency response

20Hz-90kHz

20Hz-90kHz



General Specifications

Model

HiBy R6Pro MAX

Operating System

Android 12

SOC

Snapdragon 665

(8-core 1.8GHz Kryo 260)

DAC

Dual ES9039MS PRO

Audio formats

DSD 1024

PCM 768kHz/32bit

MQA 16X



Audio Format Support

Analog output ports

3.5mm PO, 4.4mm BAL

3.5mm Line out, 4.4mm BAL Line out

Digital Output Ports USB-C, Coaxial digital via USB type-C



Wireless functionality

WiFi bands

2.4GHz, 5GHz

Bluetooth version

Bluetooth 5.0 (supports bidirectional audio 1/0)

Hi-res Bluetooth codec support

VAT, LDAC, aptX (Transmit only). aptX HD (Transmit only), AAC, SBC

WiFi audio capability

DLNA, HiByLink



Display

Size

5.9 inches diagonal

Display type

IPS

Resolution

1080*2160



Storage

RAM

6GB (LPDDR4x-1866)

ROM

128GB

USB ports

Supporting USB 2.0 and 3.2 Gen 1, max throughput 5Gbps

Micro SD

2TB



Chassis

Colour choices

Black, Blue

Body material

Titanium alloy chassis, glass back panel

Dimensions

147.45*75.2*21.8mm

Weight

425g



Power

Charging

9V-2A or 5V=0.5A

Battery capacity

8200mAh/3.8V

Play time

3.5mmPO: 10h; 4.4mmBAL: 9h

Charging protocol

PD 3.1, 40W

Charging time

<3h (0%-100%)



Misc

Firmware updates

Supports OTA online upgrade

Font size

Adjustable

Third party app installation

Unlimited
