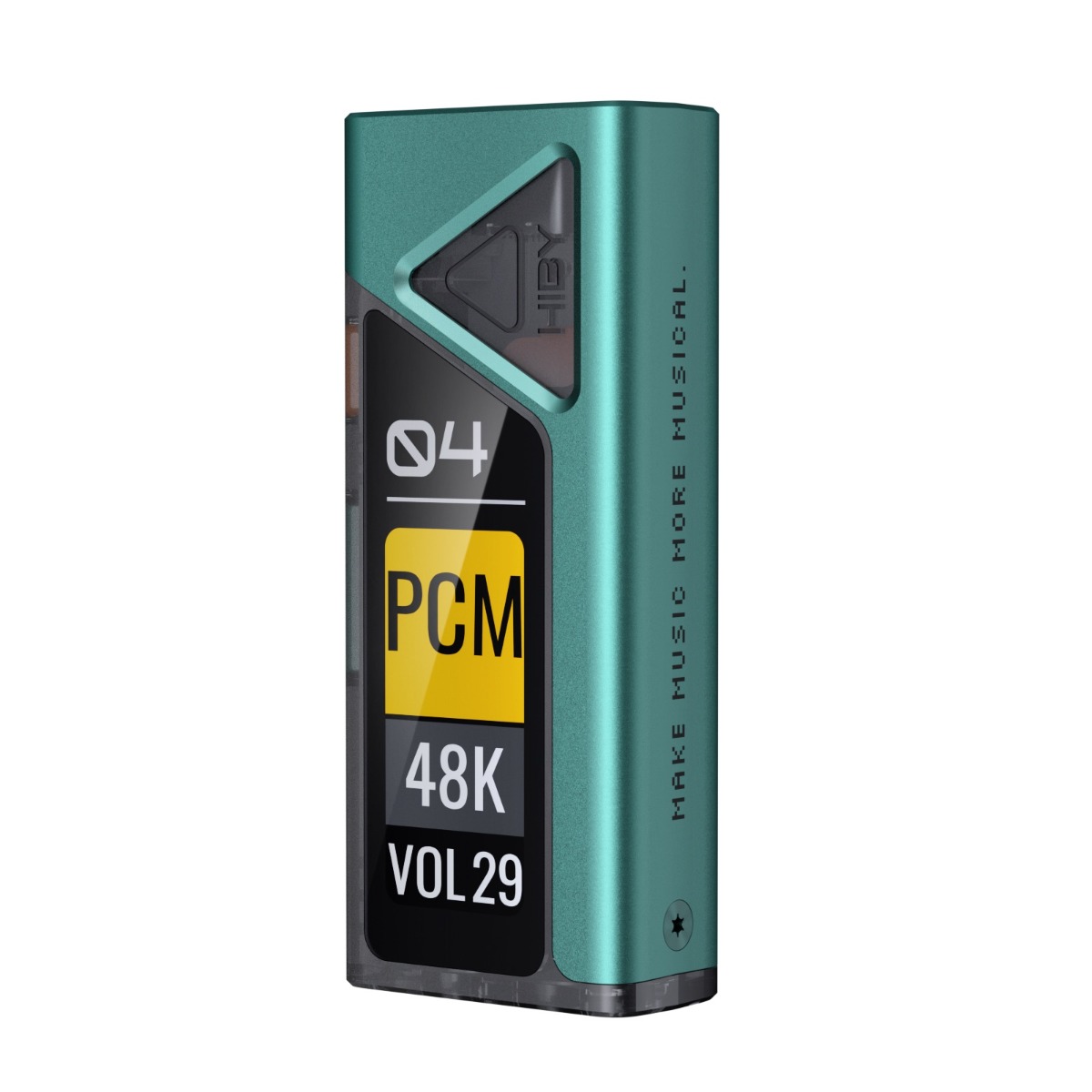

HiBy FC4 with Display
HIBY
Description / HiBy FC4 with Display
Cyborg dongle
Extending the new generation of cyborg-inspired HiBy designs, the dongle chassis is an innovative blend of aluminium alloy and translucent polycarbonate, exuding personality.
Weighing only 21 grams, the featherlight compact device can be taken everywhere with you and connected to your smartphone, etc., without fuss.
Compared with HiBy FC5 with display, the new FC4 uses the same DAC but has a lower power amplifier with a lower noise floor, making it more suitable for IEMs.
Color OLED display
With the 1.1” high-resolution color OLED display on board, all operating status and menu operations are clear at a glance.
Combined with intuitive menu design, you won’t even need to look at the manual to use this!
High performance dual DACs
Equipped with not one but two high-performance Cirrus Logic flagship MasterHiFi CS43131 DACs with built-in hi-res headphone amplification.
Blending advanced audio technology with low power consumption design, it delivers a pure, detailed high-fidelity listening experience even with power-hungry headphones, without excessive battery drain on your smartphone.
Dedicated dual femtosecond-grade audio crystal oscillators
With dual femtosecond-grade low phase noise dedicated audio crystal oscillators (45.1584 and 49.152 MHz) running at 1024x 44.1 and 48 kHz sample rates, clock jitter is drastically reduced compared to single crystal solutions.
Effectively increasing signal stability and accuracy, ensuring less distortion and more purity in your music experience.
Official companion app
Works seamlessly with the exclusive USB mode of HiByMusic, decoding all sorts of music formats losslessly in Hi-Res!
The HiByMusic app is a professional high-resolution audio player app for Android and iOS, with over 5 million users worldwide.
Its USB Exclusive Mode (for external amplifiers) is particularly acclaimed by audiophiles in the HiFi community.
Preset EQs included
8 preset EQs crafted by the HiBy tuning team to suit any music genre
User-defined parametric EQ
Use professional parametric equalization to precisely dial in corrections for your specific earphone model (or do anything a PEQ is capable of).
Easily load, save, and share your PEQ settings via the HiByMusic app.
Computer audio sound card
Supporting all major platforms (iOS / Android / macOS / Windows), with plug-and-play compatibility on all platforms including Mac and Windows.
Use this dongle anywhere for anything HiFi-related.
Hi-res audio support
Supporting up to DSD512 and PCM768kHz / 32-bit hi-res audio sample rates.
Realizing richer details and higher dynamic range to bring every musical note to life.
All-compatible port connectivity
With both 3.5mm SE and 4.4mm BAL headphone ports on board, which may be used as line out as well as headphone out.
For connection to home and car audio, as well as all manner of headphones.
Hardware volume button control
Precision 30-step volume control with discrete button control and volume memory function.
UAC 1.0 and 2.0 compatible
Compatible with all mainstream gaming consoles, PS4 / 5, Switch, etc., particularly models that require legacy USB audio class 1 compatibility.
Features
-
Cyborg-inspired exterior design
-
1.1" OLED color display
-
Dual CS43131 high-performance DACs
-
DSD512 support
-
PCM 768kHz / 32-bit support
-
Dual audio clock oscillators (45.1584MHz, 49.152MHz)
-
Preset EQs included
-
Customizable parametric EQ
-
3.5mm SE + 4.4mm balanced headphone outputs
-
MQA 8X unfolding
-
Hardware volume control
-
Hi-Res Audio certified
-
UAC 1.0 & 2.0 support
-
Multiple usage scenarios
-
Multiple colorways
Product Inclusions
-
HiBy FC4 with display
-
Type-C to Type-C cable ×1
-
USB A to C adapter ×1
-
Warranty card ×1
-
QC (Quality Control) card ×1
-
User guide ×1
-
External packing ×1
Specifications
Hardware Specifications
| Item | Description |
|---|---|
| Model | HiBy FC4 with Display |
| Colors | Black, Silver, Green |
| Dimensions | 63 × 26 × 13 mm |
| Weight | approx. 21 g |
| Featured micro-products | AB1565 + Dual CS43131 |
| Physical buttons | Vol+, Vol–, Function button |
| Audio sample format / rate support | DSD up to DSD512, PCM up to 768kHz / 32bit, MQA up to MQA 8X unfolding |
| USB class support | UAC 1.0 & 2.0 |
| Headphone / output ports | 3.5mm PO (CTIA headset compatible without microphone input) + 4.4mm BAL.PO |
Audio Specifications
| 3.5mm PO | 4.4mm BAL.PO | |
|---|---|---|
| Output Level (unloaded) | 2Vrms | 4Vrms |
| Output Level (32Ω loaded) | 1.5Vrms | 2.2Vrms |
| Output Power | 70mW | 151mW |
| THD+N | 0.0007% | 0.0006% |
| Noise Floor | 1.3µV | 1.5µV |
| SNR | 123dB | 124dB |
| Channel Separation | 71dB | 108dB |
| Frequency Response | 20Hz–90kHz | 20Hz–90kHz |
